HARDWARE INSERTION EQUIPMENT LIST

BROWS OUR EXSTENSIVE EQUIPMENT ROSTER.

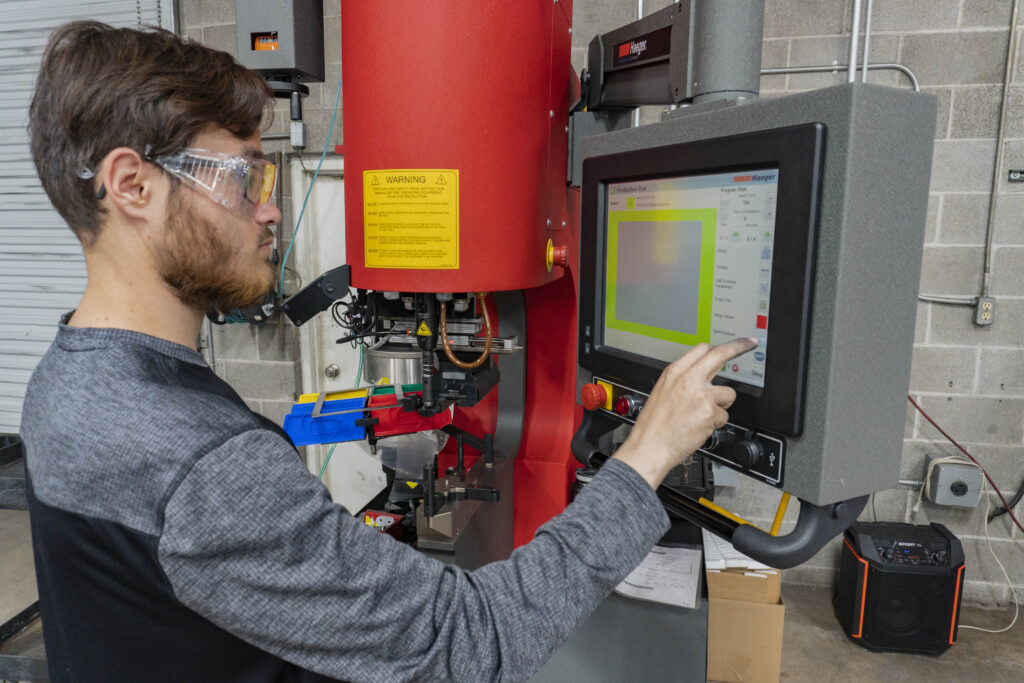

HAEGER 824 ONE TOUCH
FASTENER INSERTION SYSTEM

Our Auto Sert hardware press with a large 36” throat and 6” stroke is capable of servicing large parts requiring hardware. If your next production run requires a high volume of parts with a large number of fasteners, our Heager 824 auto loading press is well equipped to fulfill your manufacturing needs.

SPECIFICATIONS

  • Force Range: 1000lbs. (4.46kN) to 16000lbs. (72kN)
  • Throat Depth: 24” (610mm)
  • Stroke Length: Adjustable 0 to 8.5” (0 to 220mm)
  • Motor: 5 HP
  • Speed: up to 1400 insertions per hour
  • Repeatability: +/- 2% of force setting
  • Footprint: L59” x W38” x H94”
  • Fastener Range: .256 to 1/2” (M2 to M10)
  • Clinching Capability: 22 gage to 11 gage Steel    (1mm to 6mm) combined thickness

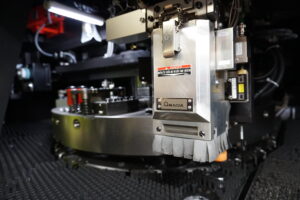

Inside the AMADA LC 2515 C1 AJ LASER/PUNCH CUTTING SYSTEM

BENEFITS OF USING A LASER/PUNCH COMBO

The LC 2515 C1 AJ provides sheet metal fabricators maximum production flexibility by integrating Amada’s innovative Multi-Purpose Turret design and proven fiber laser technology. This combination of technologies allows users to perform multiple processes on a single machine. Processes such as tapping, forming, and laser cutting can all be programmed within a single machine program to maximize part accuracy and machine productivity.

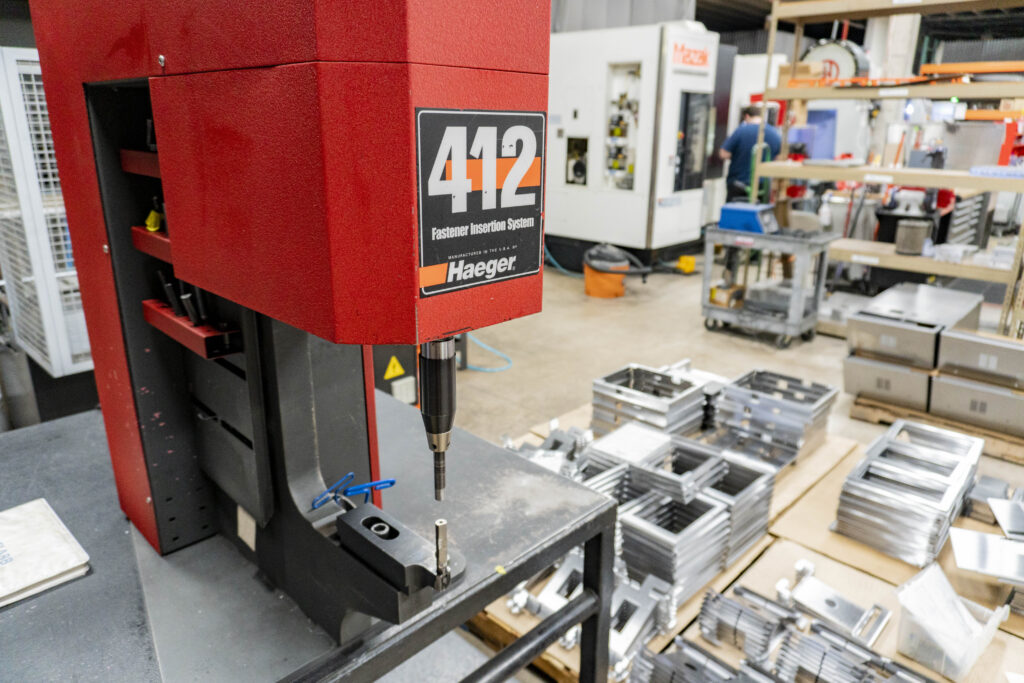

HAEGER 412
HARDWARE PRESS

SPECIFICATIONS

  • Capacity: 6 Ton
  • Force: Adjustable 300lbs-10,000lbs
  • Repeatability: 2400-2500lbs.
  • Throat depth: 18”
  • Stroke length: Up to 8”
  • Hydraulic pump motor: 2HP

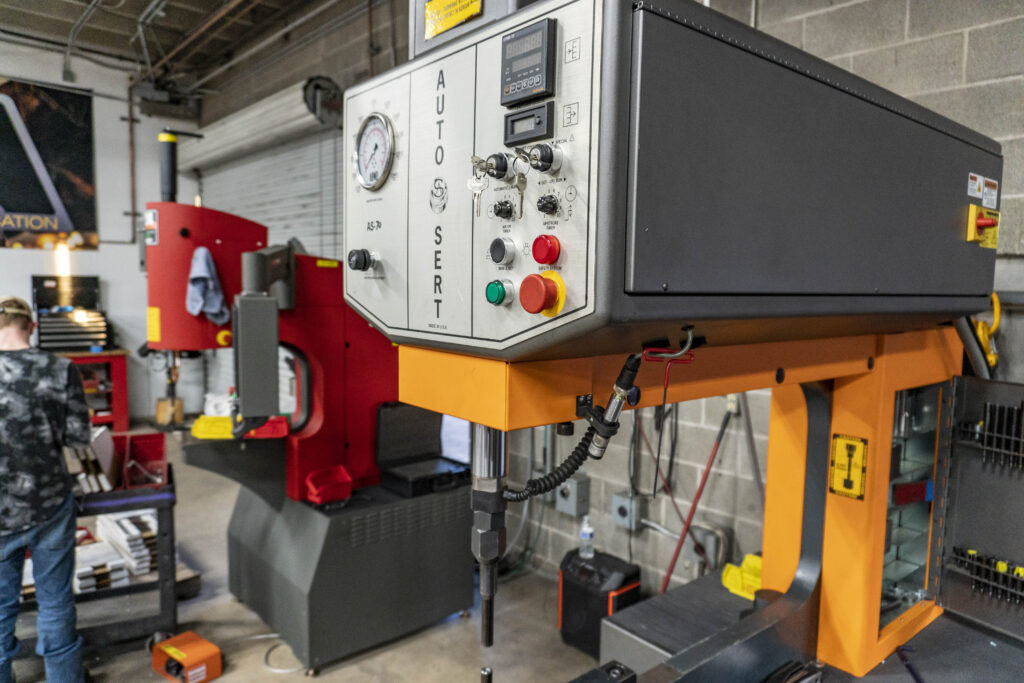

AUTO SERT AS-7.5
HARDWARE PRESS

SPECIFICATIONS

  • Capacity: Min 350 lbs. – Max 7.5 ton
  • Throat Depth: 36” inch
  • Ram Stroke: 6”
  • Pressure: Min. 40psi – Max 3,000psi
  • Dimensions: H78” x W36” x D45”

WE ARE AEI FABRICATION

WE ARE A GROWING TEAM OF SKILLED INDIVIDUALS MANUFACTURING THE HIGHEST PRECISION PARTS IN THE INDUSTRY.

YOUR TRUSTED PARTNER IN MANUFACTURING

At AEI Fabrication, we specialize in cost-saving high-speed, precision laser cutting combined with efficient, full-service metal fabrication and machining, milling & turning capabilities to create a cost-effective, turn-key solution for clientele in a wide range of industry sectors.

Founded in 1995, we’ve been fabricating aluminum, steel and stainless industrial products and projects for over twenty years. We count many of the Fortune 2000 among our clientele, in industries including aerospace, bio-medical, semi conductor, warehousing, trucking, shipping, logistics, big-box retail, grocery, sports, alternative energy, entertainment, food service, manufacturing and education. We’re also proud to serve those that serve our country, with the U.S. Air Force and NASA among our family of valued clients. Our tenets of success start with a ‘can-do’ attitude fostered by our founder’s leadership that opens minds to possibilities and drives solution creation. AEI Fabrication is known industry-wide for working closely with clientele throughout the entire product development and production process to ensure the utmost in cost-efficiencies and customer satisfaction.

With our wide range of services from design to engineering to laser cutting to welding to machining to logistics, think of us as your ‘in-house’ fabricator. We maintain the tightest tolerances and guarantee meeting our clients deadlines. The key is putting our customer’s needs first by offering industry leading customer service.

THE START OF AEI

IN 1994 AEI BEGAN AS A LIGHTING COMPANY, DOING MAINLY ASSEMBLY AND OUTSOURCING METAL WORK. THROUGH THE YEARS AEI HAS EVOLVED INTO A HIGH PRECISION METAL PARTS MANUFACTURER PRODUCING ON AVERAGE MORE THAN 12,000 PARTS PER DAY
